Maiores detalhes
Características:

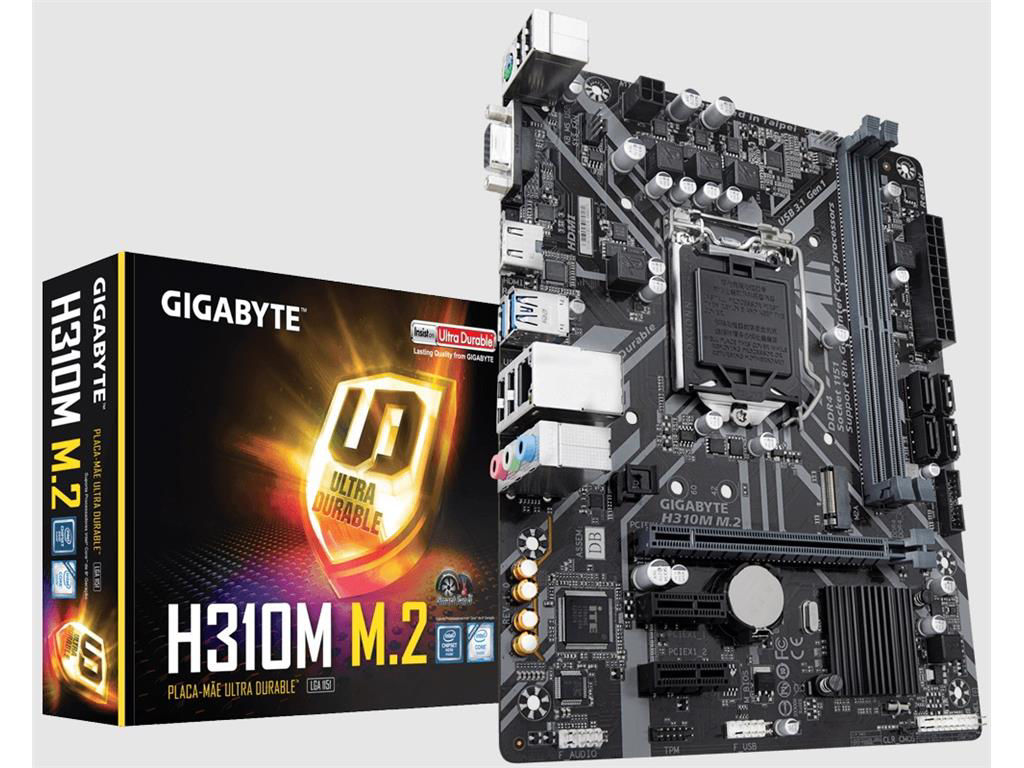

- Marca: Gigabyte
- Modelo: H310M M.2 REV. 1.1
Especificações:
Revisão 10A
BIOS Version F10
Codigo/Descrição (que consta na NFe) 010990023002
H310M M.2 2.0
Intel H310/Socket1151/rev.1.0
2 DDR4 2-CH/PCI-Ex16/Micro ATX
USB3.1 GEN 1/M.2 Socket 3
GbE LAN/HD Audio
PN: H310M M.2 2.0
EAN 4719331804916
NCM 84733041
Peso Bruto (colorbox) 0,598 Kg
Peso Líquido (placa) 0,382 Kg
Tamanho Colorbox 240 x 190 x 52 mm
Quantidade de colorbox /Master Box 20
Peso bruto (Master Box) 13,038 Kg
Peso Líquido (Masterbox) 9,020 Kg
Tamanho Masterbox 560 x 500 x 213mm
Supports 8th Gen Intel® Core Processors
Dual Channel Non-ECC Unbuffered DDR4
8-Channel HD Audio with High Quality Audio Capacitors
Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
HDMI 1.4, D-Sub Ports for Multiple Display
CEC 2019 Ready, Save Power With a Simple Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
All new GIGABYTE APP Center, simple and easy use
Anti-Sulfur Resistors Design
CPU
Support for 8th Generation Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Chipset
Intel® H310 Express Chipset
Memória
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core i7/i5 processor.
(Please refer "Memory Support List" for more information.)
Gráficos Onboard
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Áudio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Slots de Expansão
1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Interface de Armazenamento Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB Chipset:
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Conectores Internos I/O
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Conectores Painel Traseiro
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Controlador I/O
iTE® I/O Controller Chip
Monitoramento H/W
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Exclusivas
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Pacote de Software : Norton® Internet Security (OEM version)
Sistema Operacional : Support for Windows 10 64-bit
Form Factor : Micro ATX Form Factor; 22.6cm x 17.4H310M M.2 2.0
Peso c/ Embalagem:
- 0,605 kg
Dimensões:
(Das medidas maiores para menores)
- Produto: 22,6cm x 17,4cm x 3cm
- Embalagem: 27cm x 25cm x 5cm
Garantia:
06 Meses
6 meses de garantia direto com o site
